Simulator can time step and reveal some of the key data. More...

#include <Sim.h>

Collaboration diagram for stride::Sim:

Public Member Functions
std::shared_ptr< Calendar >	GetCalendar () const
	Calendar for the simulated world. More...

std::string	GetConfigValue (const std::string &attribute) const
	Get the Sim configuration for the given attribute. More...

std::shared_ptr< Population >	GetPopulation ()
	Get the population. More...

double	GetTransmissionProbability () const
	Get the stored transmission probability. More...

util::RnMan &	RefRnManager ()
	Get the random number manager. More...

const TransmissionProfile &	RefTransmissionProfile () const
	Get the transmission profile. More...

void	TimeStep ()
	Run one time step, computing full simulation (default) or only index case. More...

Static Public Member Functions
static std::shared_ptr< Sim >	Create (const boost::property_tree::ptree &config, std::shared_ptr< Population > pop, util::RnMan rnMan)
	Create Sim initialized by the configuration in property tree and population. More...

static std::shared_ptr< Sim >	Create (const std::string &configString, std::shared_ptr< Population > pop, util::RnMan rnMan)
	For use in python environment: create Sim using configuration string i.o. ptree. More...

Private Member Functions
	Sim ()
	Constructor for empty Simulator. More...

Private Attributes
boost::property_tree::ptree	m_config
	Configuration property tree. More...

ContactLogMode::Id	m_contact_log_mode
	Specifies contact/transmission logging mode. More...

unsigned int	m_num_threads
	The number of (OpenMP) threads. More...

bool	m_track_index_case
	General simulation or tracking index case. More...

bool	m_adaptive_symptomatic_behavior
	Should symptomatic cases stay home? More...

std::shared_ptr< Calendar >	m_calendar
	Management of calendar. More...

AgeContactProfiles	m_contact_profiles
	Contact profiles w.r.t age. More...

std::vector< ContactHandler >	m_handlers
	Contact handlers (rng & rates). More...

InfectorExec *	m_infector
	Executes contacts/transmission loops in contact pool. More...

std::shared_ptr< Population >	m_population
	Pointer to the Population. More...

util::RnMan	m_rn_man
	Random number generation management. More...

TransmissionProfile	m_transmission_profile
	Profile of disease. More...

PublicHealthAgency	m_public_health_agency
	Agency to implement reactive strategies. More...

Friends
class	SimBuilder

Detailed Description

Simulator can time step and reveal some of the key data.

The Subject base class used for the interaction with the python environment only.

Definition at line 46 of file Sim.h.

Constructor & Destructor Documentation

stride::Sim::Sim ( )

explicitprivate

Constructor for empty Simulator.

Definition at line 39 of file Sim.cpp.

References Create(), stride::ContactLogMode::None, and SimBuilder.

Here is the call graph for this function:

Member Function Documentation

static std::shared_ptr<Sim> stride::Sim::Create	(	const boost::property_tree::ptree &	config,
		std::shared_ptr< Population >	pop,
		util::RnMan	rnMan
	)

static

Create Sim initialized by the configuration in property tree and population.

Referenced by stride::SimController::Control(), stride::StanController::Control(), Create(), and Sim().

Here is the caller graph for this function:

std::shared_ptr< Sim > stride::Sim::Create	(	const std::string &	configString,
		std::shared_ptr< Population >	pop,
		util::RnMan	rnMan
	)

static

For use in python environment: create Sim using configuration string i.o. ptree.

Definition at line 58 of file Sim.cpp.

References Create(), and stride::util::RunConfigManager::FromString().

Here is the call graph for this function:

std::shared_ptr<Calendar> stride::Sim::GetCalendar ( ) const

inline

Calendar for the simulated world.

Initialized with the start date in the simulation world. Use GetCalendar()->GetSimulationDay() for the number of days simulated.

Definition at line 58 of file Sim.h.

std::string stride::Sim::GetConfigValue ( const std::string & attribute ) const

inline

Get the Sim configuration for the given attribute.

Definition at line 61 of file Sim.h.

std::shared_ptr<Population> stride::Sim::GetPopulation ( )

inline

Get the population.

Definition at line 64 of file Sim.h.

double stride::Sim::GetTransmissionProbability ( ) const

inline

Get the stored transmission probability.

Definition at line 67 of file Sim.h.

util::RnMan& stride::Sim::RefRnManager ( )

inline

Get the random number manager.

Definition at line 70 of file Sim.h.

const TransmissionProfile& stride::Sim::RefTransmissionProfile ( ) const

inline

Get the transmission profile.

Definition at line 73 of file Sim.h.

void stride::Sim::TimeStep ( )

Run one time step, computing full simulation (default) or only index case.

Definition at line 63 of file Sim.cpp.

References stride::ContactType::College, stride::PublicHealthAgency::Exec(), stride::ContactType::IdList, stride::ContactType::K12School, m_adaptive_symptomatic_behavior, m_calendar, m_contact_profiles, m_handlers, m_infector, m_population, m_public_health_agency, m_rn_man, m_transmission_profile, stride::Population::RefContactLogger(), stride::Population::RefPoolSys(), stride::util::SegmentedVector< T, N, Safe >::size(), and stride::ContactType::Workplace.

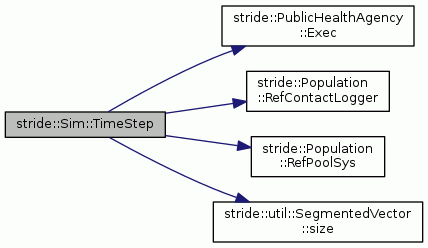

Here is the call graph for this function:

Friends And Related Function Documentation

friend class SimBuilder

friend

Definition at line 82 of file Sim.h.

Referenced by Sim().

Member Data Documentation

boost::property_tree::ptree stride::Sim::m_config

private

Configuration property tree.

Definition at line 85 of file Sim.h.

ContactLogMode::Id stride::Sim::m_contact_log_mode

private

Specifies contact/transmission logging mode.

Definition at line 86 of file Sim.h.

unsigned int stride::Sim::m_num_threads

private

The number of (OpenMP) threads.

Definition at line 87 of file Sim.h.

bool stride::Sim::m_track_index_case

private

General simulation or tracking index case.

Definition at line 88 of file Sim.h.

bool stride::Sim::m_adaptive_symptomatic_behavior

private

Should symptomatic cases stay home?

Definition at line 89 of file Sim.h.

Referenced by TimeStep().

std::shared_ptr<Calendar> stride::Sim::m_calendar

private

Management of calendar.

Definition at line 91 of file Sim.h.

Referenced by TimeStep().

AgeContactProfiles stride::Sim::m_contact_profiles

private

Contact profiles w.r.t age.

Definition at line 92 of file Sim.h.

Referenced by TimeStep().

std::vector<ContactHandler> stride::Sim::m_handlers

private

Contact handlers (rng & rates).

Definition at line 93 of file Sim.h.

Referenced by TimeStep().

InfectorExec* stride::Sim::m_infector

private

Executes contacts/transmission loops in contact pool.

Definition at line 94 of file Sim.h.

Referenced by TimeStep().

std::shared_ptr<Population> stride::Sim::m_population

private

Pointer to the Population.

Definition at line 95 of file Sim.h.

Referenced by TimeStep().

util::RnMan stride::Sim::m_rn_man

private

Random number generation management.

Definition at line 96 of file Sim.h.

Referenced by TimeStep().

TransmissionProfile stride::Sim::m_transmission_profile

private

Profile of disease.

Definition at line 98 of file Sim.h.

Referenced by TimeStep().

PublicHealthAgency stride::Sim::m_public_health_agency

private

Agency to implement reactive strategies.

Definition at line 99 of file Sim.h.

Referenced by TimeStep().

The documentation for this class was generated from the following files:
