UA_CoMP::Num::Integral< QuadAlgorithm, Integrand > Class Template Reference

Wrap a quadrature algoritm and a functor to produce an integral. More...

#include <Integral.h>

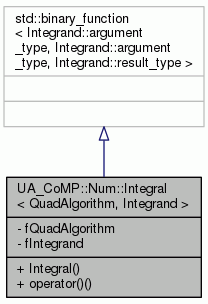

Inheritance diagram for UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >:

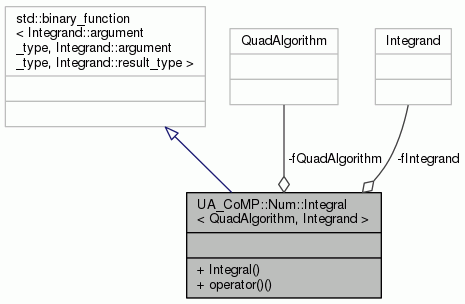

Collaboration diagram for UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >:

Public Member Functions
	Integral (QuadAlgorithm const &quad, Integrand const &ftor)
	Constructor initializes all datamembers. More...
Integral::result_type	operator() (typename Integral::first_argument_type l, typename Integral::first_argument_type r) const
	Evaluates integral from l to r. More...

Private Attributes
QuadAlgorithm	fQuadAlgorithm
Integrand	fIntegrand

Detailed Description

template<typename QuadAlgorithm, typename Integrand>
class UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >

Wrap a quadrature algoritm and a functor to produce an integral.

The integral is a function of its lower and upper integration boundaries. It models the adaptable binary function concept.

Definition at line 19 of file Integral.h.

Constructor & Destructor Documentation

template<typename QuadAlgorithm, typename Integrand>

UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >::Integral ( QuadAlgorithm const &  quad, Integrand const &  ftor  )

inline

Constructor initializes all datamembers.

Parameters

quad	Quadrature algorithm that computes the integral.
ftor	Functor that get integrated.

Definition at line 28 of file Integral.h.

Member Function Documentation

template<typename QuadAlgorithm, typename Integrand>

Integral::result_type UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >::operator() ( typename Integral< QuadAlgorithm, Integrand >::first_argument_type  l, typename Integral< QuadAlgorithm, Integrand >::first_argument_type  r  ) const

inline

Evaluates integral from l to r.

Returns

Value of the integral.

Parameters

l	Left integration boundary.
r	Right integration boundary.

Definition at line 36 of file Integral.h.

References UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >::fIntegrand, and UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >::fQuadAlgorithm.

Member Data Documentation

template<typename QuadAlgorithm, typename Integrand>

QuadAlgorithm UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >::fQuadAlgorithm

private

Definition at line 43 of file Integral.h.

Referenced by UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >::operator()().

template<typename QuadAlgorithm, typename Integrand>

Integrand UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >::fIntegrand

private

Definition at line 44 of file Integral.h.

Referenced by UA_CoMP::Num::Integral< QuadAlgorithm, Integrand >::operator()().

---

The documentation for this class was generated from the following file:

• Integral.h
